Get XVL Player for Windows - View ANY CAD model
Many Viewing Options Available



All players and viewers from Lattice Technology are FREE.  All offer viewing--some offer very powerful interrogation capabilities such as the insertion of section planes.



Visit 3D Model Viewing for all of the options and sample files:

  • Apple iOS for mobile devices such as the iPad
  • Microsoft Excel using a free plug-in.



Or perhaps you want to embed interactive 3D models on 3D web pages with XVL Web Master.



Instructions



Please complete the form to the right in order to download the FREE XVL Player.



After submitting the form, you will receive an email with the download instructions.



Please email us at support@lattice3d.com if you have any questions.



About XVL Player



XVL Player enables users to easily visualize and interrogate 3D CAD models. XVL Player enables anyone to view (including animations), rotate, measure, and cross-section 3D XVL data.  PMI can be viewed (including GD&T) along with the complete assembly tree.



Work instructions are a very powerful capability offered by Lattice Technology.  These instructions are textual based, step-by-step instructions, that are attached to geometry, for completing complex tasks such as assembly for the manufacturing line or service procedures. Work instructions, which may include animations, are fully supported by XVL Player.

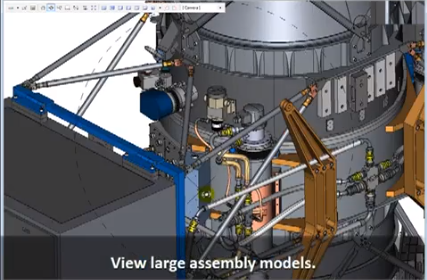

Because the models are extremely small (usually less than 1% of the original CAD model size), XVL Player allows users to visualize and interrogate extremely large and complete assemblies on minimally configured desktops and laptops.  There are even solutions for iOS devices like the Apple iPad.



XVL Player is a FREE Windows application for desktops and laptops.  It can be opened in two different modes: as a standalone application or as a browser-based application with an add-on for Internet Explorer or Mozilla Firefox.

Get all the details at XVL Player.
