Download: Lattice3D Reporter Viewer

Lattice3D Reporter is a FREE plug-in for Microsoft Excel for Viewing

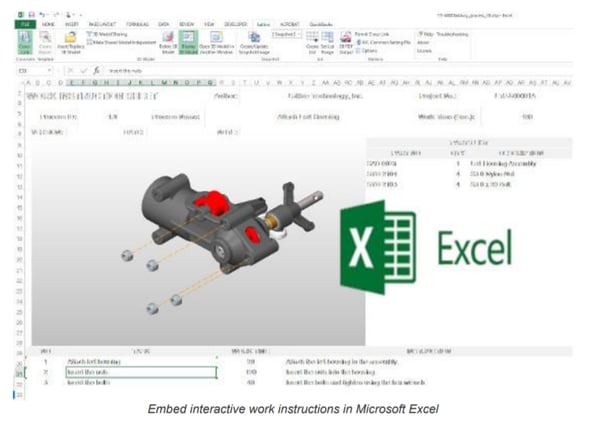

Excel add-in

Lattice3D Reporter brings the intuitive power of 3D visualization to anyone who has Microsoft Excel. By using the free “add-in” for Microsoft® Excel, everyone in your extended enterprise can have access to the product data they need to perform their job. With Lattice3D Reporter, you can easily and quickly embed ultra-lightweight versions of your 3D CAD models into any Microsoft Excel spreadsheet.

The model and its parts may be linked to BOMs, assembly instructions, procurement lists, etc.

Get all the details at product detail page for Lattice3D Reporter for Microsoft Excel.

Click here to watch a video overview.


Instructions for Downloading Lattice3D Reporter


Please complete the form to the right in order to download the FREE add-in that allows you to view and interrogate 3D models using Microsoft Excel.

NOTE: In order to experience interactive 3D models in a Microsoft Excel spreadsheet, they must first be created with the authoring version of Lattice3D Reporter, which must be purchased.

After submitting the form, you will receive an email with the download instructions. Also included in the email will be a link to sample XVL files that can be used with Lattice3D Reporter.

Please email us at if you have any questions.


Many Other Viewing Options Also Available


All viewers from Lattice Technology are FREE. All offer viewing and some offer very powerful interrogation capabilities such as inserting Section Planes.

Click here to see all of the options.
