Animated Work Instructions in a 3D PDF

Download our sample data file — works with the Adobe reader you already have
Interactive & Animated 3D PDF - Click for Explanation

3D PDFs for Better Communication



Instructions are integrated with interactive models

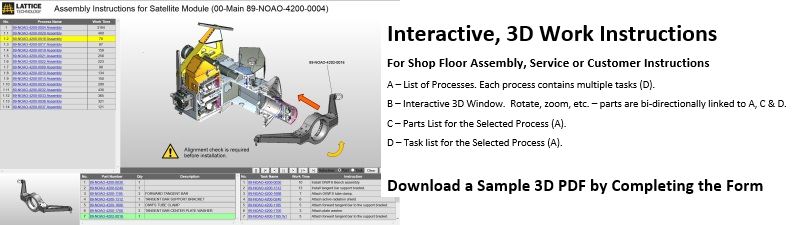

Click the image for an expanded view and a short description of each window.



3D PDFs are:

  • FREE to view with the standard Adobe Reader
  • Powerful ways to communicate

Simple but Powerful



Some of the possible uses of an interactive 3D PDF from Lattice Technology:

  • Assembly and disassembly instructions for customers
  • Collaboration inside and outside of your company
  • Service and repair procedures and training
  • Shop floor procedures, work instructions and training



3D PDFs can easily be created without programming or scripting from XVL Studio or Lattice3D Reporter.



Download a Sample 3D PDF



Complete the form to the right and we will email you a sample 3D PDF. You will be able to open the 3D PDF with the standard Adobe Reader you probably already have installed.

Try a 3D PDF
